Load and discharge resistors
The charging resistor is a current limiting resistor for the loading and discharge of capacitors and limits for example the in-rush current that flows into the intermediate circuit capacitor.
The device must be laid out for a high level of single pulse energy and nominal voltage for this purpose. The inductance of the resistor also contributes to the limiting of the in-rush current, for this reason, REO wire resistors are the correct choice.
REO PRODUCT FINDER
Resistor REOHM Series BW 154
Braking resistor for drives with frequency converters of low to medium power or as a charging resistor. Installation close to the frequency converter. Mounting close to the frequency inverter.
Resistor Series BW 155 – Combination
Braking resistor for drives with frequency converters of medium to high power. Mounting close to the frequency inverter.
Resistor REOHM BW 155
Braking resistor for drives with medium to high-power frequency inverters.
Resistor REOHM BW 156
Braking resistor for drives with low to medium power frequency inverters.

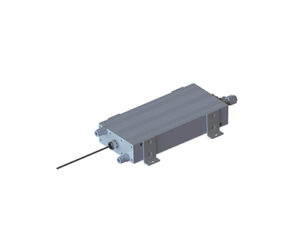

Resistor REOHM series NTT R D 158
The series D 158 can be used as braking or load resistor for drive technology, industrial applications, test fields, E-Mobility and railway engineering with integrated water cooling.
Resistor REOHM series NTT R D 158
The resistor NTT RD 158 is a water-cooled damping resistor, which is used for traction in railway applications.
Resistor REOHM Series D 330
The REO D 330 braking resistor converts excess braking energy into useful heat and is therefore ideal for electric or hybrid drives.
