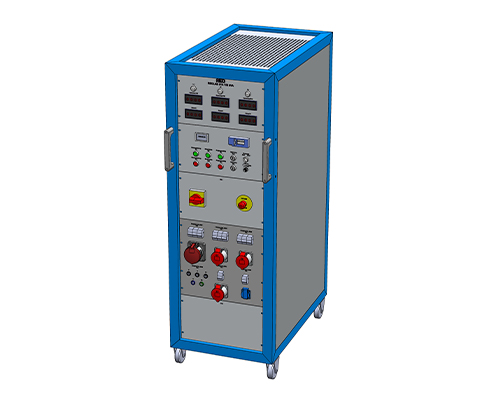

Three-phase voltage supplies with auto winding
DESCRIPTION
This is the ideal answer for every laboratory requiring a variable voltage source with manual or automatic adjustment and simultaneous voltage stabilization.
REOLAB 310
Three-phase voltage supplies with auto winding, motor drive and electronic control of the output voltage to approx. 1.5% regulation accuracy.
REOLAB 312
Three-phase voltage supplies with auto winding for manual adjustment of output voltage
Advantages
- No harmonic waves
- No EMC interference
- Clean sinusoidal form
| Input voltage | 3 x 400 V L/L bzw. 3 x 230 V L/N |
| Output voltage | 3 x 0 – 450 VAC (3 x 0 – 400 V) |
| Output current | 3 x 10 – 100 A |
| Output power | 7.8 to 69 kVA as standard version |
| Vector group | Separate windings |
| IP Code | IP 20 in mobile housing |
| Frequency range | 50/60 Hz |
| Input voltage | 3 x 400 V L/L bzw. 3 x 230 V L/N |
| Output voltage | 3 x 0 – 450 VAC |
| Output current | 3 x 18 A |
| Output power | 14 kVA as standard version |
| Vector group | Separate windings |
| IP Code | IP 20 in mobile housing |
| Frequency range | 50/60 Hz |
*Of course, other voltages and outputs can also be offered on request.
In addition, different operating options/operating concepts and industrial interfaces are possible.
Download our extensive catalog and discover many other REO products.
