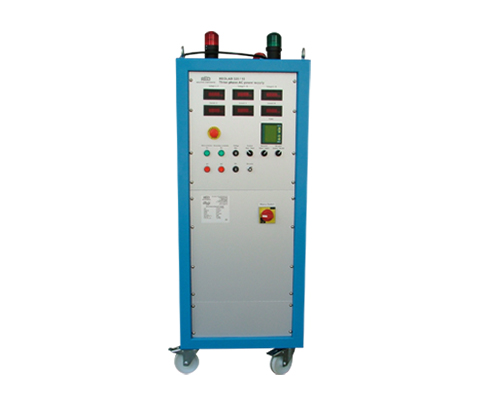

Three-phase-voltage supplies with separate windings, motor drive and electronic voltage control
Description
Three-phase-voltage supplies with separate windings, motor drive and electronic voltage control with safety circuits and warning beacons are suitable for the endurance testing of cable terminations. The regulation precision of the output voltage is approx. 1.5%.
In conjunction with the REOLAB 220 as a heavy current source for temperature rise testing, the REOLAB 320 can be used for insulation tests on cables and cable terminations.
Advantages
- No harmonics waves
- No EMC interference
- Clean sinusoidal form
TECHNICAL DATA*
| Input voltage | 3 x 400 V L/L or 3 x 230 V L/N |
| Output voltage | 3 x 0 – 3000 VAC, 3 x 0 – 4000 VAC, 3 x 0 – 5000 VAC |
| Output current | 3 x 0,25 AAC |
| Output power | 1,3 – 2,16 kVA |
| Schaltgruppe | Stern / Stern |
| Protection Class | IP 20 in mobile housing |
| Frequency range | 50/60 Hz |
All data and configurations can be found in our product datasheet.
