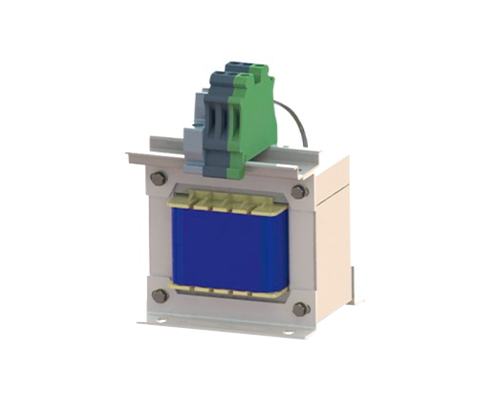

Single-phase iron core reactor
DESCRIPTION
These chokes are used in test laboratories as load chokes. They can be interconnected (almost) arbitrarily. If these chokes are used with corresponding resistors, testing under different cos(phi) is possible. This is required, for example, to test the connection and connection behavior of components.
ADVANTAGES
- Robust design
- High flexibility
- compact construction
- Low losses
- Insulation class: F at 40° C
- Climatic category: 25/085/21 DIN IEC 68 Part 1
- Max.
winding temperature: 125° C - Protection rating: IP00
- Nominal Voltage: 230 – 600 V
- Rated current: 1,5 – 32,5 A
- Inductance: 0,031 – 71 mH
Also as IP 54 available with:
- Input cable/output cable
- Input cable/output socket
- Complete cable connection solution for mains, output and control connections
