Accessories for variable transformers, duty cycle controller
Description

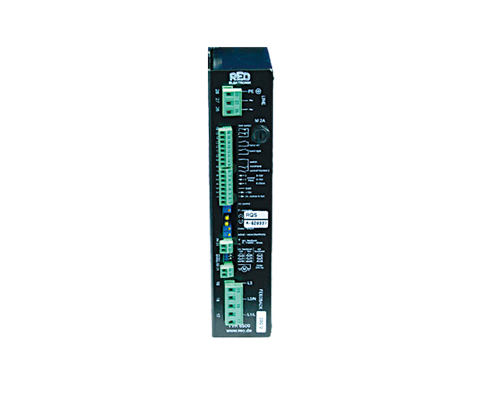

Control unit for motor-controlled variable transformers
Adjustable power supplies in the mains voltage range and in the high-power range are in most cases realized with variable transformers. In most cases, it is not enough to adjust the voltage or power, but also to keep a set value constant. For this purpose, the variable transformers are driven by a motor, which is controlled by appropriate control electronics.
The device described here is such a control electronic for controlling DC motors with permanently excited field.
Advantages
- Easy to use
- For voltage stabilizers or as current/voltage regulators
- Horizontal or vertical mounting
Technical data
| Setpoint input | 0 … 10 V / 0 … 20 mA |
| Switching option | Switching option to 2nd setpoint (closed = 2nd setpoint) Switching option to push-button operation (closed = manual operation) (without control function) |
| Reference voltage | Internal 10 V – reference voltage |
| Internal setpoint input | possible |
| Actual value input | 0 … 10 V. DC |
| Actual value input | 0 … 10 V SS AC / 0 … 7 Veff AC |
| Internal voltage transformer | 3 x 0 – 500 V or 0 – 500 V |
|---|---|
| Inputs for limit switches (Inhibit) | |
| Error-proportional control speed | |
| Adjustable motor breakaway torque | |
| Adjustable control characteristic (P-component) | |
| Dead time | approx. 200ms |
| Construction | Screw-on housing |
| Connection | Via plug connectors |
| Motor voltage | 24 V, DC – 1 A max. |
| Supply voltage | 80V – 265 V AC |
| Setpoint input | 0 … 10 V / 0 … 20 mA |
