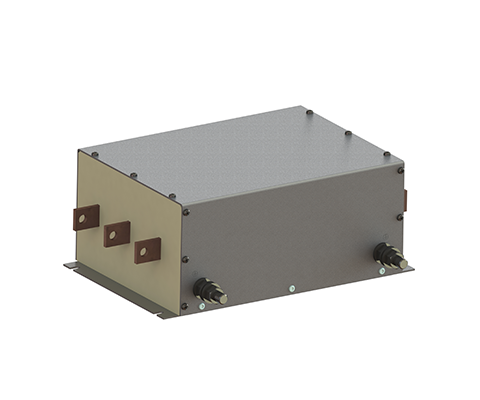

EMI-Filter CNW 107.3/690

High-current filter, 3-wire

DESCRIPTION

The EMI filter is specifically for the suppression of high-current applications in wind energy and industrial applications designed. This filter series is for the voltage levels of 480V and 690V constructed. The filter can be delivered in various casing versions. So it can be adapted to different environmental conditions.
There are also versions for offshore applications possible.

ADVANTAGES

specifically designed for high performances
suitable for offshore applications
compact design
Good heat dissipation
rail connector
fast installation

TYPICAL APPLICATIONS

The EMC filter is specifically for the suppression of high-current applications in wind energy and industrial applications designed.

TECHNICAL SPECIFICATION

Conforming to: VDE 0565-3 / IEC 950 / UL 1283
Test voltage: L-L 2100 V, DC 1s, L-PE 2700 V, DC 1s
Overload: 1,5 x I 1 min/h
Climatic category: DIN IEC 68 Part 1 25/085/21

Type	Rated voltage [V]	Rated current [A]	Leakage current[mA]	L [μF]	Cx [μF]	Cy [μH]
CNW 107.3/280	3×480/ 690	3×280	<300	100	40	3,8
CNW 107.3/500	3×480/ 690	3×500	<300	100	40	3,8
CNW 107.3/700	3×480/ 690	3×700	<300	100	40	3,8
CNW 107.3/1000	3×480/ 690	3×1000	<300	100	40	3,8
CNW 107.3/1600	3×480/ 690	3×1600	<300	44	50	7,6
CNW 107.3/2500	3×480/ 690	3×2500	<300	44	50	7,6
CNW 107.3/3000	3×480/ 690	3×3000	<300	40	50	7,6

DIMENSIONS IN MM

Type	Connection	PE-Connection	L1[mm]	L2[mm]	L3[mm]	L4[mm]	B1[mm]	B2[mm]	H1[mm]
CNW 107.3/280	30×5	M12	420	335	320	296	220	175	135
CNW 107.3/500	40×5	M12	420	335	320	296	220	175	135
CNW 107.3/700	40×10	M12	420	335	320	296	220	175	135
CNW 107.3/1000	40×10	M12	420	335	320	296	220	175	135
CNW 107.3/1600	50×10	M12	590	406	340	360	330	300	180
CNW 107.3/2500	80×15	M12	590	406	340	360	330	300	180
CNW 107.3/3000	120×15	M12	700	506	400	420	390	360	240
