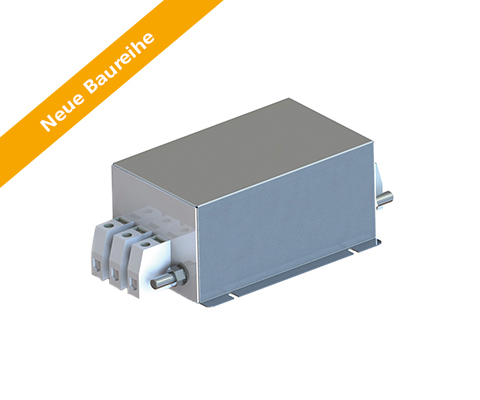

Three-phase line filters (3 lines, single-stage)
DESCRIPTION
NEW SERIES!
The new series not only scores points for its faster delivery time, but also for its resource conservation and increased efficiency.
Recommended filter for suppressing interference according to EN 55011, Class A and EN 61800-3, category C2. Special installation
Special connections For space and for assembly reasons it may be reasonable to use connections other than terminals. If the filter is always fitted in the same place, REO can build your individual filter-whether with bolts, cable or other connections.
ADVANTAGES
- Small dimensions
- quick connection
- low-temperature rise
- touch-proof terminals
- good damping performance at
a low leakage current - useable for industrial applications
TYPICAL APPLICATIONS
Frequency converters for motor drives (e.g. lifts, materials handling, pumps, ventilation and air-conditioning systems, industrial applications, wind power installations and power supply units
- Conforming to: VDE 0565-3 / IEC 950 / UL 1283
- Test voltage: L-L 2100 V, DC 1s, L-PE 2700 V, DC 1s
- Overload: 1,5 x I 1 min/h
- Climatic category: DIN IEC 68 Part 1 25/085/21
| Type | Rated voltage [V] | Rated current [A] | Leakage current [A][mA] | Cx [μF] |
Cy [nF] |
L [mH] |
R [kOhm] |
Frequency[Hz] |
| CNW 103/3 | 3×500 | 3×3 | <1 | 0,5 | 30 | 3,0 | 1,12 | 50/60 Hz |
| CNW 103/6 | 3×500 | 3×6 | <1 | 0,5 | 30 | 2,2 | 1,12 | 50/60 Hz |
| CNW 103/10 | 3×500 | 3×10 | <1 | 0,5 | 30 | 1,7 | 1,12 | 50/60 Hz |
| N CNW 103/16 | 3×500 | 3×16 | <<1 | 1,0 | 39 | 1,5 | 1,12 | 50/60 Hz |
| N CNW 103/25 | 3×500 | 3×25 | <1 | 1,0 | 39 | 1,2 | 1,12 | 50/60 Hz |
| N CNW 103/36 | 3×500 | 3×36 | <1,5 | 2,2 | 60 | 1,5 | 1,12 | 50/60 Hz |
| N CNW 103/50 | 3×500 | 3×50 | <1,5 | 2,2 | 60 | 0,9 | 1,12 | 50/60 Hz |
| N CNW 103/80 | 3×500 | 3×80 | <5 | 2,75 | 197 | 0,4 | 1,12 | 50/60 Hz |
| N CNW 103/120 | 3×500 | 3×120 | <5 | 2,75 | 197 | 0,25 | 1,12 | 50/60 Hz |
| N CNW 103/150 | 3×500 | 3×150 | <5 | 2,75 | 197 | 0,8 | 1,12 | 50/60 Hz |
| N CNW 103/180 | 3×500 | 3×180 | <5 | 2,75 | 197 | 0,8 | 1,12 | 50/60 Hz |
| Type | Housing | Connection | PE-Connection | B1[mm] | B2[mm] | B2[mm] | D[mm] | H[mm] | L1[mm] | L2[mm] | L3[mm] |
| CNW 103/3 | A | Flat plug 6,3 mm | AMP flat plug | 53 | – | – | 5,3 | 40 | 110 | 100 | 90 |
| CNW 103/6 | A | Flat plug 6,3 mm | AMP flat plug | 53 | – | – | 5,3 | 40 | 110 | 100 | 90 |
| CNW 103/10 | A | Flat plug 6,3 mm | AMP flat plug | 53 | – | – | 5,3 | 40 | 110 | 100 | 90 |
| N CNW 103/16 | B | Clamps 4mm² | Earthing bolt (M6) | 98 | 80 | 70 | 5,0 | 70 | 177 | 150 | 90 |
| N CNW 103/25 | B | Clamps 6mm² | Earthing bolt (M6) | 98 | 80 | 70 | 5,0 | 70 | 179 | 150 | 90 |
| N CNW 103/36 | B | Clamps10mm² | Earthing bolt (M6) | 148 | 135 | 120 | 7,0 | 70 | 229 | 200 | 160 |
| N CNW 103/50 | B | Clamps16mm² | Earthing bolt (M6) | 148 | 135 | 120 | 7,0 | 70 | 238 | 200 | 160 |
| N CNW 103/80 | B | Clamps 25mm² | Earthing bolt (M10) | 168 | 155 | 140 | 7,0 | 90 | 303 | 240 | 160 |
| N CNW 103/120 | B | Clamps 50mm² | Earthing bolt (M12) | 168 | 155 | 140 | 7,0 | 90 | 331 | 240 | 160 |
| N CNW 103/150 | B | Clamps 50mm² | Earthing bolt (M12) | 168 | 155 | 140 | 7,0 | 90 | 331 | 240 | 160 |
| N CNW 103/180 | B | Clamps 95mm² | Earthing bolt (M12) | 168 | 155 | 140 | 7,0 | 90 | 339 | 240 | 160 |
