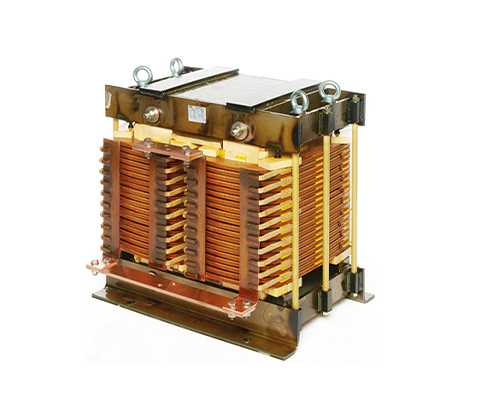

Inductive load units
DESCRIPTION
These inductors are used as load inductors for testing single-phase and multiphase traction converters and individual circuit breakers. Three inductors are required in three-phase applications.
Advantages
- High dielectric strength 10 KV
TECHNICAL SPECIFICATION
| Type | NPT 100; 1500 | NPT 100; 2000 |
| Voltage | 4000 V | 4500 V |
| Inductance | 1 mH | 0,25 mH |
| Frequency | 15 – 75 Hz | 50 Hz |
| Current | 1500 A | 2000 A |
| Copper | approx. 600 kg | approx. 300 kg | Weight | approx. 1800 kg | approx. 815 kg | Protection class | IP 00 |
|---|
