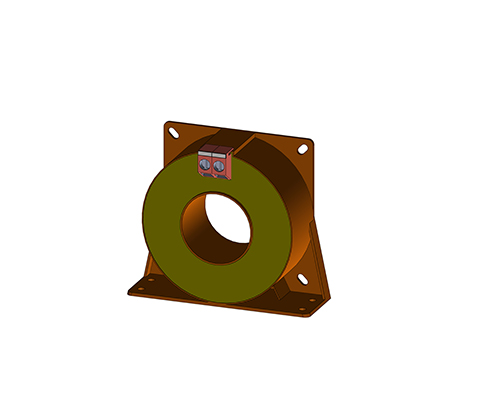

Passive Current transformer Series IN

Instrument transformers

DESCRIPTION

The growing development and spread of electronic devices with high working frequencies require the use of current transformers with an extended frequency range.
This demand can be met with specially selected materials in conjunction with optimized design.

Advantages

Litz wires or terminals according to UL 94 V-0
Current transformers for precise current measurements
Higher accuracy classes 1; 0.5; 0.2 than with standard IE
Measurements in the frequency range 16 2/3 to -50kHz
Pulse measurement (e.g. 8/20μs)
faible erreur de phase pour la mesure de la puissance
Very low remagnetization losses and eddy current losses
Use of nanocrystalline and high-quality cores
circuits primaires et secondaires séparés électriquement
des formes faciles à monter
Wide range of housings with various push-through openings

Technical specification

Technical Data
Primary rated current: 50 – 1.000 A
Frequency range: 50 – 50.000 Hz

Type		50	100	300	500	1000
Primary rated current [A]	I_PN	50	100	300	500	1000
Max. Primary rated current [A]	I_maxPN	60	120	360	600	1200
Secondary current [mA]	I_aN	1000	1000	1000	1000	1000
Power [VA]	P_sek	0,5	1,0	2,5	5,0	15
Ratio	K_N	50	100	300	500	1000
Load resistance [Ω]	R_B	0,5	1,0	2,5	5,0	15
Load voltage [V]	U_RB	0,5	1,0	2,5	5,0	15
Measuring accuracy 50 Hz [%]	F_U	1,0	1,0	1,0	1,0	1,0
Ambient temperature [°C]	T_A	-25 to +70	-25 to +70	-25 to +70	-25 to +70	-25 to +70
Frequency range [Hz]	f	0,05 to 50	0,05 to 50	0,05 to 50	0,05 to 50	0,05 to 50
Insulation test voltage [kVac]	V_P	3	3	3	3	3

Dimensions in mm

Type	Connection [mm²]	h [mm]	b1/b2 [mm]	t [mm]	DL [mm]	p/s [mm]	a [mm]	c1/c2 [mm]	f [mm]	e [mm]	l [mm]
IE/50	2,5	70	70/89	33	31	57/57	77	15,5/…	4,3	6×4,3	25
IE/100	2,5	70	70/89	33	31	57/57	77	15,5/…	4,3	6×4,3	25
IE/300	2,5	95	94/110	44	40	78/78	100	18/…	5,3	8×5,3	25
IE/500	2,5	95	94/110	44	40	78/78	100	18/…	5,3	8×5,3	25
IE/1000	2,5	141	138/170	55	64	120/120	150	18/25	6,5	10×6,5	25
