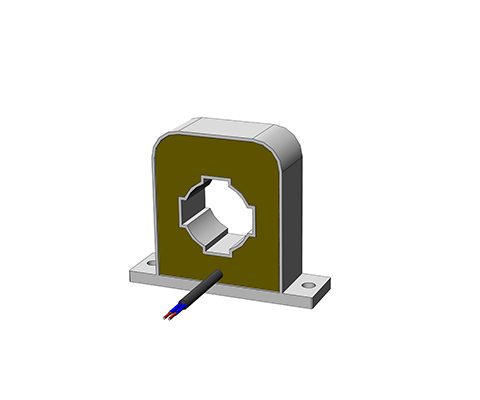

Bushing-type and bar-type current transformers
DESCRIPTION
For high requirements in railway and industrial technology at higher frequencies up to 50kHz. High-quality nanocrystalline core materials guarantee maximum transmission quality with low losses. Only UL-listed materials are used in full encapsulation with UL94-V0 material.
Current transformers for increased requirements such as in the railway sector or mobile applications. Robust housing designs with reliable mounting options for vertical or horizontal installation.
Advantages
- High reliability
- Non-critical in the event of overload currents
- Current transformers for precise current measurements
- Measurements in the frequency range 16 2/3 to -50kHz
- Use of nanocrystalline and high-quality cores
- High-quality wires in temperature class F (155°C), H (180°C)
- High-quality UL-listed insulating materials (e.g. UL94-V0)
- Safe electrically isolated primary and secondary circuits
- Robust housing designs (for horizontal/vertical mounting)
- Shock and vibration tests in accordance with DIN EN 61373
Variable connections: clamps, plugs, flat-cable plugs or cables
Wide range of housings with various push-through openings
Typical applications
Industry and Railway engineering
| Primary rared current [A] | IPN | r.m.s | 600 |
| Max. Primary rated current [A] | ImaxPN | r.m.s | 720 |
| Secondary current [mA] | IaN | r.m.s | 300 |
| Power [VA] | Psec | 0,9 | |
| Ratio | KN | 1: | 2000 |
| Load resistance [Ω] | RB | 10 | |
| Voltage at load resistance [V] | URB | r.m.s | 3 |
| Measuring accuracy 50 Hz [%] | FU | @ IPN, TA = 25°C | ≤ 1 |
| Ambient temperature [°C] | TA | -25 to +70 | |
| Frequency [Hz] | f | 0,05 to 50 | |
| Insulation test voltage Primary / Secondary / 2 sec [kVac] |
VP | r.m.s 50 Hz | 3 | Connection | 3×0,5mm² mit Schirm | Cable | Storage temperature [°C] | -25 to +85 | Secondary coil resistance [Ω] | @ TA = 25°C | 36,5 | Weight [kg] | 0,210 | Standards | EN61373 |
