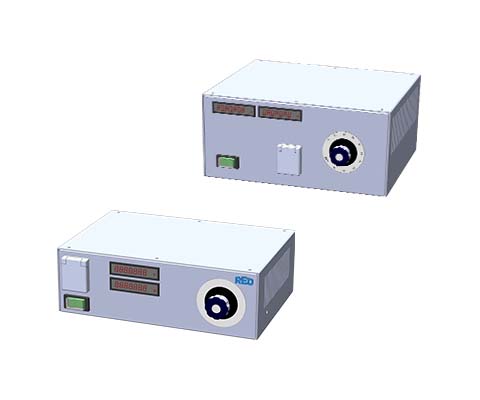

REOLINE Laboratory Power Supplies (digital, separate windings)
DESCRIPTION
The output voltage of this power supply unit is continuously adjustable from 0…250 V. The absolute zero position results in a voltage-free state at position 0. The devices are also equipped with analog or digital voltmeters and ammeters.
Advantages
- Mains lead 2 m long with plug with earth socket
- Mains switch with thermal overload protection
- Toroidal variable-ratio transformer with absolute zero position
- Isolating transformer with switch-on damping
- Analogue or digital voltmeter and ammeter at the output
- Earthing contact socket or safety laboratory sockets in the output
Typical applications
- Laboratory
- Test field
- Workshop and service
Output voltage0 – 250 V Output power0.15 – 2.00 kVA
| Input voltage | 230 V |
| Output current | 3 x 0,6 – 8 A |
| Frequency | 50 / 60 Hz |
| Vector group | Ii0 |
| Max. Ambient temperature |
+ 40°C |
| Protection | IP20 |
| Produced in accordance with | EN 61010-1 / VDE 0441 Part 1 |
All data and configurations can be found in our product data sheet
