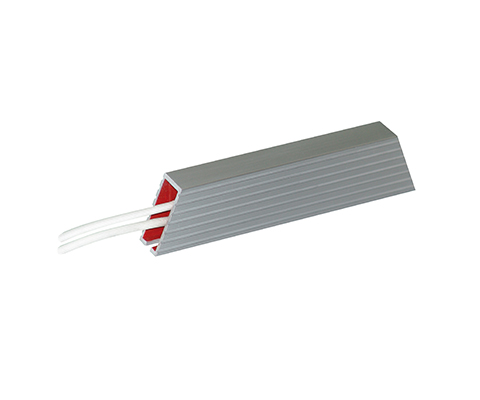

Resistor REOHM Series BW 154

Max. continous power: 200 W

DESCRIPTION

Braking resistor for drives with frequency converters of low to medium power or as a charging resistor. Installation close to the frequency converter. Mounting close to the frequency inverter.

Advantages

Small dimensions
quick connection
intrinsically safe
suitable for the use with any frequency drive
high power to size ratio
Compact design
highly resistive on overload
vertical and horizontal construction
options available with temperature switches

Typical applications

Braking resistor for drives with low to medium power frequency inverters or can be used as a charging resistor. Mounted close to the frequency inverter.

Technical specification

Type	Resistance values R [Ohm]	Continuous output at 25°C and surface overtemperature of P[W]		max. Operating voltage U [V]
		200 K	250 K
BW 154 / 100	3 – 500	100	150	900
BW 154 / 150	2,2 – 160	120	160
BW 154 / 200	5 – 200	140	180
BW 154 / 250	5 – 250	160	200

Protection class IP 54, higher protection classes on request, test voltage 2,5 kV AC other capacities and mounting dimensions on request

Dimensions in mm

Type	B1 [mm]	H1 [mm]	L1 [mm]	L2 [mm]	L3 [mm]	L4 [mm]	D [mm]	Connection cable
BW 154 / 100	40	21	170	155	140	250	5,5	2 x AWG 14, UL 1659
BW 154 / 150	40	21	210	195	180	250	5,5	2 x AWG 14, UL 1659
BW 154 / 200	40	21	250	235	220	250	5,5	2 x AWG 14, UL 1659
BW 154 / 250	40	21	290	275	260	250	5,5	2 x AWG 14, UL 1659

The resistance values refer to standard products with a standard tolerance of +/- 10 % with an ambient temperature of 20 °C. The resistance value insignificantly changes in function of the winding temperature. Therefore, resistance changes of approx. +10 % in comparison to the cooled-down conditions may occur.

We are also happy to produce customer-specific solutions outside our standard portfolio – just contact us!
