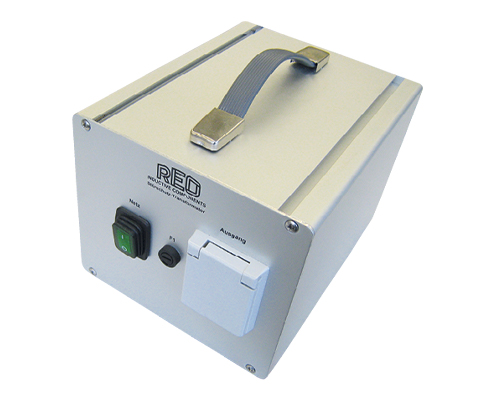

Transformer with special segregated windings
Description
A damping of up to 90 dB is achieved with specially wound isolating transformers in segregated windings due to the low-capacitance design and an additional high-quality filter. An isolating transformer ensures additional safety – even for experimental constructions.
Advantages
- Fault clearance of sources of interference, operation on contaminated networks
- Integrated mains input socket, power switch, device fuse and output socket
- Free-of-ground output voltage to establish an IT network
- Galvanic mains separation
- High insulation resistance
- Low-capacitance isolating transformer
- Broadband interference suppression
- Integrated mains filter with high damping
- Transportable with handle
| Type | Rated power (VA) | Voltage (V) | Electrical current (A) | Dimensions | Weight | |||
|---|---|---|---|---|---|---|---|---|
| Primary | Secondary | A (mm) | B (mm) | C (mm) | (kg) | |||
| RFT/SST-300 | 300 | 230 | 230 | 1,3 | 175 | 165 | 230 | 6,0 |
| RFT/SST-600 | 600 | 230 | 230 | 2,6 | 175 | 165 | 230 | 8,9 |
| RFT/SST-900 | 900 | 230 | 230 | 3,9 | 175 | 165 | 230 | 10,2 |
*Maximum production range: up to 0.9 kVA, primary/secondary voltages: 230 V, rated currents: up to 3.9 A
