AC Magnet REOVIB WI 721
Powder-coated version DESCRIPTION Powder-coated design in full encapsulation at 900 rpm, 1500 rpm, 3000 rpm or 6000 rpm, power outputs up to 3900 VA Mounting with blind tapped holes at the base of the magnet and armature Cable exit downwards with unshielded or shielded cable The use of a new coating technology allows us to design the vibrating magnet in the WI 721 series to be smaller. This results in significant savings in terms of weight, material, and space requirements. This optimized surface coating also ensures consistently high performance without the usual power losses that can occur with other systems. The advantages of this new coating are manifold: Use in the pharmaceutical industry Use in the food processing industry with FDA conformity Corrosion protection High temperature resistance Non-flammable Cold resistant Homogeneous coating Resistant to solvents High abrasion resistance Thanks to these properties, the WI 721 series is ideally suited for demanding applications, especially in environments that require high standards of hygiene, durability, and performance. Advantages Corrosion protection by means of powder-coating FDA compliant (Food and Drug Administration) Optimal size/performance ratio Good adjustability Maximum power 3900 VA Also for low-frequency applications Maximum tractive power 6900 Low Profile Typical applications Packaging industry and weighing sector for feeding and sorting processes. Automation process and assembly equipment which utilizes electromagnetic drives.Particularly suited for the food processing sector and the pharmaceutical sector (FDA compliant) Technical specification Types Max. Nominal air gap[mm] Performance with 6000 1/min [VA] Rated current = thermal rated current at 230V [A] Peak tensile force at nominal air gap [N] Performance with 3000 1/min [VA] Therm. rated current at 230V [A] Peak tensile force at nominal air gap [N] Weight magnet [kg] Weight anchor [kg] REOVIB WI 721/10 2,5 320 1,4 230 280 1,2 229 2,1 0,34 REOVIB WI 721/12 3 450 1,95 330 425 1,85 318 2,8 0,62 REOVIB WI 721/14 3 1200 5,2 850 1200 5,2 1410 6,9 1,45 REOVIB WI 721/16 3 2200 9,5 1590 1890 8,2 2620 10,5 2,6 REOVIB WI 721/18 3 – – – 3900 16,9 6900 28 9 DIMENSIONS IN MM Types a [mm] b [mm] c [mm] d f1 f2 f3 g h [mm] i p r REOVIB WI 721/10 100 68 67 – 62,5 12,5 9 67 39 18,5 30 M6 REOVIB WI 721/12 100 100 67 40 62,5 15,5 9 67 71 18,5 30 M6 REOVIB WI 721/14 155 110 109 – 91,5 23,5 15 109 69 27,5 50 M10 REOVIB WI 721/16 155 168 109 80 91,5 23,5 15 109 127 27,5 50 M10 REOVIB WI 721/18 230 170 170 65 129,5 42,5 18 170 121 48,5 75 M12 Certifications
AC Magnet REOVIB WI 421
Corrosion protection by means of nickel plating DESCRIPTION Nickel-plated version in full casting at 900 rpm, 1500 rpm, 3000 rpm or 6000 rpm, outputs up to 1265 VA Mounting with blind tapped holes at the base of the magnet and armature Cable exit downwards with unshielded or shielded cable Advantages Corrosion protection by means of nickel plating Optimal size/performance ratio Good adjustability Maximum power 2020 VA Also for low-frequency applications Maximum tractive power 2900 N Low Profile Typical applications Packaging industry and weighing sector for feeding and sorting processesAutomation process and assembly equipment which utilises electromagnetic drives. Technical specification Types Max. Nominal air gap[mm] Performance with 6000 1/min [VA] Rated current = thermal rated current at 230V [A] Peak tensile force at nominal air gap [N] Performance with 3000 1/min [VA] Therm. rated current at 230V [A] Peak tensile force at nominal air gap [N] Weight magnet [kg] Weight anchor [kg] REOVIB WI 421/10 2,5 200 0,87 110 156 0,68 128 2,1 0,34 REOVIB WI 421/12 3 350 1,52 150 300 1,3 264 2,8 0,62 REOVIB WI 421/14 3 800 3,5 580 748 3,25 570 6,9 1,45 REOVIB WI 421/16 3 1600 6,9 1500 1265 5,5 1400 10,5 2,6 REOVIB WI 421/18 3 – – – 2020 8,8 2900 28 9 DIMENSIONS IN MM Types a [mm] b [mm] c [mm] d f1 f2 f3 g h [mm] i p r REOVIB WI 421/10 100 68 66 – 61,5 12 9 66 38 17,5 30 M6 REOVIB WI 421/12 100 100 66 40 61,5 15 9 66 70 17,5 30 M6 REOVIB WI 421/14 155 110 108 – 90,5 23 15 108 68 26,5 50 M10 REOVIB WI 421/16 155 168 108 80 90,5 23 15 108 126 26,5 50 M10 REOVIB WI 421/18 230 170 169 65 128,5 42 18 169 120 47,5 75 M12 Data sheet Download our extensive catalog and discover many other REO products. Download Data sheet Certifications
AC Magnet REOVIB WI 211
AC magnet with configurable voltage/frequency options Advantages Maximum power 250 VA Configurable voltage/frequency options increases flexibility Quick change of the connection voltage by using the appropriate Low Profile Typical applications Packaging industry and weighing sector for feeding and sorting processesAutomation process and assembly equipment which utilises electromagnetic drives. TECHNICAL SPECIFICATION Types Max. Nominal air gap[mm] Performance with 3000 1/min [VA] Rated current = thermal rated current at 230V [A] Peak tensile force at nominal air gap [N] Weight magnet [kg] Weight anchor [kg] 6000 1/min [VA] REOVIB WI 211/7 1 175 0,75 40 1,15 0,165 REOVIB WI 211/9 1 210 0,9 105 1,96 0,33 REOVIB WI 211/10 1 250 1,1 210 2,1 0,34 *Suitable REOVIB control units: REOVIB SMART, REOVIB RTS, REOVIB MTS, REOVIB MFS *Typical applications: Packaging and weighing industry for feeding and sorting processes, automation processes when using drives with vibrating solenoids DIMENSIONS IN MM Types a [mm] b [mm] c [mm] d e f f1 f2 f3 f4 g h [mm] i k p r s [mm] ⌀t REOVIB WI 211/7 78 47 54 60 3 77 74 17 10 22 54 21 20 31 20 6,5 37 6,5 REOVIB WI 211/9 90 56 66 83 3 91 88 19 11 24 66 32,5 22 31 44 8,1 44 8 REOVIB WI 211/10 100 68 66 – – – 61,5 12 9 48 66 38 17,5 31 30 M6 – – Data sheet Download our extensive catalog and discover many other REO products. Download Data sheet Certifications

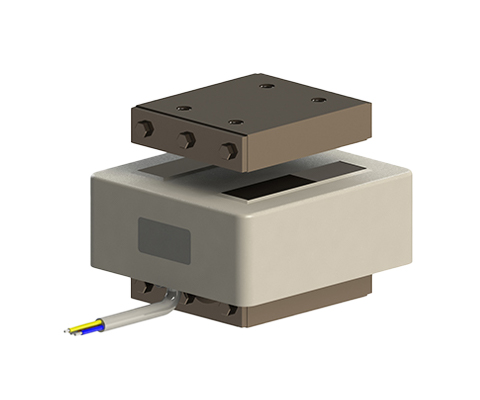

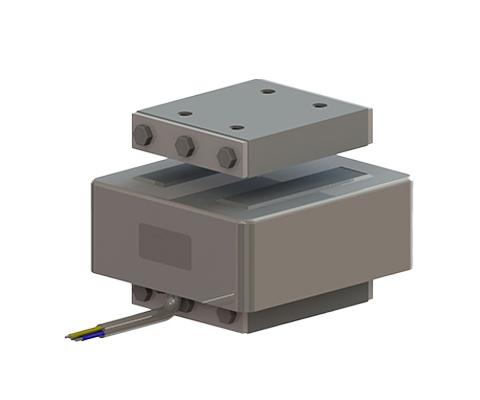

AC Magnet REOVIB WI 121
Description Standard series, fully encapsulated, maximum power 3900 VA at 3000 1/min or 6000 1/min Mounting with blind tapped holes at the base of the magnet and armature Cable exit downwards with unshielded or shielded cable Advantages Optimal size/performance ratio Good adjustability Maximum power 3900 VA Maximum tractive power 6900 Low Profile Typical applications Packaging industry and weighing sector for feeding and sorting processesAutomation process and assembly equipment which utilises electromagnetic drives. Technical data Types Max. Nominal air gap[mm] Power at 6000 rpm [VA] Rated current=thermal rated current at 230V [A] Peak tensile force with nominal air gap [N] Power at 3000 1/min [VA] Therm. rated current at 230V [A] Peak tension at nominal air gap [N] Magnet weight [kg] Anchor weight [kg] REOVIB WI 121/10 2,5 320 1,4 230 280 1,2 229 2,1 0,34 REOVIB WI 121/12 3 450 1,95 330 425 1,85 318 2,8 0,62 REOVIB WI 121/14 3 1200 5,2 850 1100 4,8 1350 6,9 1,45 REOVIB WI 121/16 3 2200 9,5 1590 1890 8,2 2620 10,5 2,6 REOVIB WI 121/18 3 – – – 3900 16,9 6900 28 9 DIMENSIONS IN MM Types a [mm] b [mm] c [mm] d f1 f2 f3 g h [mm] i p r REOVIB WI 121/10 100 68 66 – 61,5 12 9 66 38 17,5 30 M6 REOVIB WI 121/12 100 100 66 40 61,5 15 9 66 70 17,5 30 M6 REOVIB WI 121/12 100 100 66 40 61,5 15 9 66 70 17,5 30 M6 REOVIB WI 121/14 155 110 108 – 90,5 23 15 108 68 26,5 50 M10 REOVIB WI 121/16 155 168 108 80 90,5 23 15 108 126 26,5 50 M10 REOVIB WI 121/18 230 170 169 65 128,5 42 18 169 120 47,5 75 M12 Data sheet Download our extensive catalog and discover many other REO products. Download Data sheet Certifications

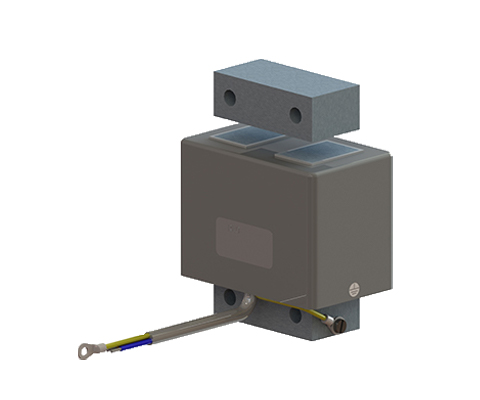

AC Magnet REOVIB WI 111
IP 00, for DIN rail mounting Description Standard series, fully encapsulated, maximum power of 350 VA at 3000 1/min or 6000 1/min Mounting by means of standard round holes, base plate or slotted holes Cable exit downwards or sideways Advantages Optimal size/performance ratio Good adjustability Safe mounting by means of solid base plate/mountings through the core Compact and robust structure TYPICAL APPLICATIONS Packaging industry and weighing sector for feeding and sorting processesAutomation process and assembly equipment which utilises electromagnetic drives. Technical data Types Max. Nominal air gap [mm] Performance with 3000 1/min [VA] Rated current = thermal rated current at 230 V [N] Peak tensile force at nominal air gap [N] Weight [kg] 6000 1/min [VA] Magnet Anchor REOVIB WI 111/3 2 15 0,065 5 0,135 0,025 REOVIB WI 111/5 1 60 0,26 38 0,405 0,085 REOVIB WI 111/6 2,5 70 0,3 24 0,58 0,11 REOVIB WI 111/7 3 140 0,6 45 1,15 0,165 REOVIB WI 111/9 3 350 1,5 150 1,98 0,33 Technical Dimensions Types a [mm] b [mm] c [mm] d e f1 f2 f3 g h [mm] i k l [mm] l1 m ⌀n ⌀o p ⌀r s [mm] ⌀t REVIB WI 111/3 44,4 26,4 30 32 2 42 9 5 30 12 10 4,2 22 20 22 4,2 4,4 – 4,4 20 3,6 REVIB WI 111/5 61,5 31,5 45 50 3 63 14 7,5 45 16 15 3 43 35 36 4,2 4,4 15 5,1 28 5,1 REVIB WI 111/6 64 42 45 50 3 63 14 7,5 45 20,5 15 – 43 35 36 4,2 4,4 15 5,1 28 5,1 REVIB WI 111/7 78 47 54 60 3 77 17 10 54 21 20 4,5 45 40 45 7 5,5 20 6,5 37 6,5 REVIB WI 111/9 90 56 66 83 3 88 19 11 66 32,5 22 – 66 50 66 7 6,4 44 8,1 44 8,1 Data sheet Download our extensive catalog and discover many other REO products. Download Data sheet Certifications
AC Magnet REOVIB WE 131
Packaging and weighing industry for feeding and sorting processes; automation processes when using drives with vibrating magnets.
