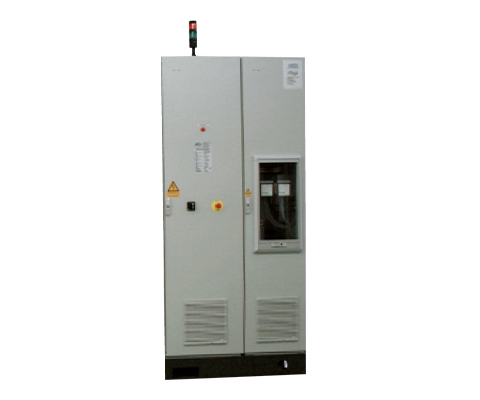

Three-phase AC/DC voltage supplies with separate windings and motor drive
DESCRIPTION
REOLAB 123
Three-phase AC/DC voltage supplies with separate windings and motor drive for testing/developing e.g. AC and DC static converters or auxiliary
REOLAB 124
Three-phase AC/DC voltage supplies with separate winding and motor drive. Used for motor testing
Advantages
- No harmonic waves
- No EMC interference
- Clean sinusoidal form
| Input voltage | 3 x 400 VAC |
| Output voltage | 0 – 2500 V bzw. 0 – 5000 DC bzw 0 – 430 VAC |
| Output current | 60 ADC, 30 ADC, 335 AAC |
| Output power | 150 kW as standard version / 144 kVA |
| Vector group | Triangle / star / star / 2 x B6U/li0 |
| IP Code | IP 20 |
| Frequency range | 50/60 Hz |
| Input voltage | 3 x 400 VAC |
| Input voltage | 0 – 500 VDC bzw. 3 x 0 – 600 VAC bzw. 0 – 300 DC |
| Output voltage | 200 ADC, 3 x 200 AAC, 15 ADC |
| Ausgangsleistung | 100kW als Standardausführung / 208 kVA bzw. 4,5 kW |
| Vector group | Stern / Stern / 2 x B6U |
| IP Code | IP 20 |
| Frequency range | 50/60 Hz |
*Of course, other voltages and outputs can also be offered on request.
In addition, different operating options/operating concepts and industrial interfaces are possible.
