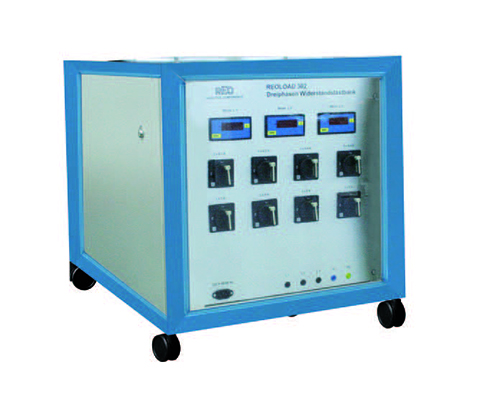

Three-phase resistive loads
Advantages
- Eight three-phase fixed stages for testing power supplies and heat flows with active current
- Activation and deactivation of the individual stages under load using a rotary switch
- Display by digital ammeter (96 x 48 mm) really effective in the control panel
- Connections on safety laboratory sockets 4 mm
TECHNICAL SPECIFICATION
| Resistance | Currents | Power | Nominal voltage | Total power | Protection class |
| 3 x 2300 R | 3 x 0,1 A | 69 W | 3 x 400 V L/L or 3 x 230 V L/L 50/60 Hz |
11,385 kW | IP20 |
|---|---|---|---|---|---|
| 3 x 1150 R | 3 x 0.2 A | 138 W | |||
| 3 x 575 R | 3 x 0.4 A | 276 W | |||
| 3 x 288 R | 3 x 0.8 A | 552 W | |||
| 3 x 230 R | 3 x 1 A | 690 W | 3 x 115 R | 3 x 2 A | 1380 W | 3 x 57,5 R | 3 x 4 A | 2760 W | 3 x 28,8 R | 3 x 8 A | 5520 W |
