Description
In contrast to the previous model, the new built-in LED display allows exact values to be set the same way every time. This ensures more precise settings and easier traceability of the entries.
Thanks to the connection to Industry 4.0 and IIoT readiness, with the REOVIB SMART-MIC you are already securing the possibilities for the communication technology of the future.

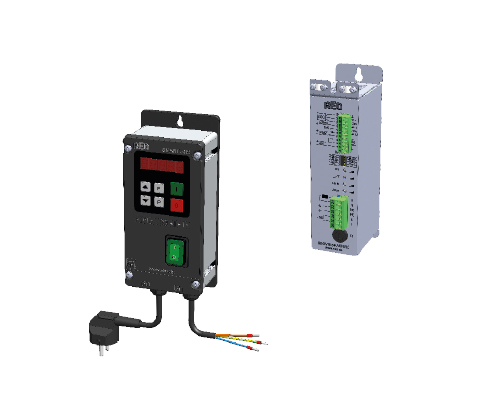

Just like the predecessor devices, the devices in the REOVIB SMART-MIC series are also available in various protection classes – as a control cabinet installation module in IP20 or as a housing variant in IP54 for direct mounting on the application. The housing variants with protection class IP54 are available in different versions:
- Input cable/output cable
- Input cable/output socket
- Completely pluggable with input plug and output socket
In addition to the functions and benefits of the REOVIB SMART series, the control unit has mains voltage compensation for constant amplitude and an adjustable soft start ramp time.
Advantages
- LED display
- Mains voltage compensation
- IP54-Version for mounting directly on the vibrating machine or IP20-Version fas a module for mounting in a switch cabinet
- Output current up to 6A
Typical applications
| Mains input | 110/ 230 V switchable |
| Mains frequency | 50 / 60 Hz +/- 3 Hz |
| Output voltage | 20 … 100V/ 40…210 V |
| Output current | max. 6A |
| Vibration frequency50Hz | 50 Hz / 100 Hz |
| Vibration frequency 60Hz | 60 Hz / 120 Hz |
| Setpoint specification | LED display,0 … 10 V, 0 (4) … 20 mA* |
| Ext. Enable | 24 V DC, Switch |
| Umin/ Umax setting | LED display (IP54) / potentiometer (IP20) |
| Soft start adjustable | 0…60 Sec. |
| Mains voltage compensation | ✓ |
| Conformity | CE, RoHS |
| Protection class | IP20/ IP54 |
| Ambient temperature | 0…40°C |
* Optional for IP54
