IP 20, single-channel control
DESCRIPTION

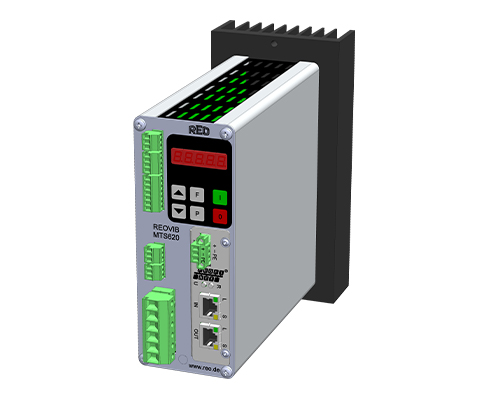

The control unit REOVIB MTS 620 is a phase-angle control for adjusting the feed speed of vibratory conveyors. All parameters can be entered via the LED display. User-specific settings can be saved and recalled. The device is available in protection class IP20.
The REOVIB MTS series includes single, dual, and triple-channel control units for vibratory feeder drives. These are phase-angle controls. Consequently, the vibration frequency of the conveying devices can be equal to or twice as high as the mains frequency of the input voltage (depending on the type, other frequencies are also possible). Plug connections for all inputs and outputs enable quick connection and facilitate the combination of multiple devices with each other or with external controls. The devices use digital technology and are operated via a LED or LCD display and buttons All settings can be made without the housing having to be opened.
The REOVIB MTS 620 devices are available in IP20 version.
ADVANTAGES
- Phase-angle control with programmable functions
- Single-channel, two-channel or three-channel control for the optimal control of the complete conveyor system
- Digital setting of all parameters via LED display or multiline LCD display (MTS 443 LCD)
- In IP54 or IP20 design (MTS 441)
- Automatic mains voltage adjustment
- Material flow control
- Various sensor logic functions can be set
- Adjustable soft start
- With fill level/overflow control
- Integrated mains voltage compensation with constant vibration amplitude
| Mains input | 230V, 400 V, 480 V switchable |
| Mains frequency | 50 / 60 Hz +/- 3 Hz |
| Output voltage | 210 V, 360 V, 430 V |
| Output current | 25 A |
| Number of outputs | 1 |
| Max. Output current from all outputs |
– |
| Vibration frequency | 50 Hz (25 Hz, 33,3 Hz, 50 Hz, 100 Hz) 60 Hz (30 Hz, 40 Hz, 60 Hz, 120 Hz) |
| Setpoint value | LED-Display, 0 … 10 V, 0 (4) … 20 mA |
| Status signal | Relay changer 250 V, 1 A |
| Ext. Enable | 24 V DC, Switch |
| Sensor supply | 24 V DC (optional) |
| Setting Umin/ Umax | Display |
| Soft start | adjustable 0…60 Sec. |
| With fill level/overflow control | PNP, 24 V DC (optional) |
| Mains voltage compensation | ✓ |
| Coarse-/fine control | ✓ |
| Selectable timer function | – |
| Sensor time out monitor | – |
| Conformity | CE, RoHS |
| Protection class | IP20 |
