Transformers for medical technology
Description
Advantages
- Large selection of options
- Low weight
- Short-circuit and overload protection
- Integrated inrush current limiter
- Sturdy aluminium housing
- Equipotential bonding pin according to DIN 42801
- Plug connections according to IEC 60320
- IEC60601-1:2005/AMD2:2020
ANSI/AAMI ES60601-1:2005/A2:2021
CAN/CSA C22.2 No. 60601-1:14/A2:2022-3 (medical technology) USA and Canada
IEC60601-1-2:2014(Partly); EN/IEC 61000-3-2:2014; EN/IEC 61000-3-3:2013

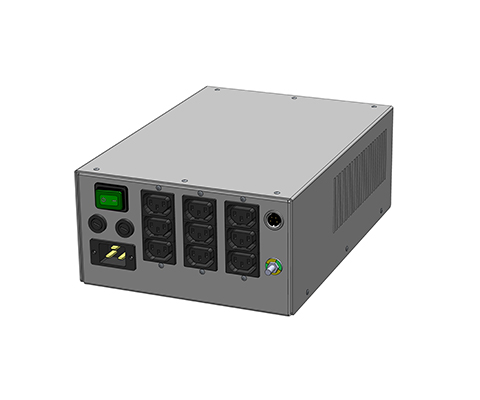

REOMED I 2200
The REOMED 2200 offers a wider power range and a higher load capacity, making it suitable for more demanding medical applications. In addition, it has integrated protection mechanisms such as short-circuit and overload protection as well as an inrush current limiter. The device has a low stray magnetic field and is housed in a sturdy aluminium casing. These features ensure increased safety and reliability in medical environments. This model is also TÜV-certified and complies with international standards.
REOMED I 1600
The REOMED 1600 offers very good efficiency and simple connection options. The device has a very low stray magnetic field and guarantees a high level of safety. It can be optionally equipped with electronic switch-on attenuation, overvoltage protection and a mains filter. It is also lighter and offers short-circuit and overload protection as well as integrated inrush current limitation. A sturdy aluminium housing and plug connections in accordance with IEC 60320 round off the technical advantages.
REOMED I 1300
The REOMED I 1300 offers a wide range of options and a low weight, which makes it more flexible and easier to handle. It also has integrated functions such as short-circuit and overload protection, an inrush current limiter and plug connections in accordance with IEC 60320. The robust aluminium housing and certifications in accordance with international standards such as IEC 60601-1 and ANSI/AAMIES 60601-1 underline its suitability for use in medical rooms.

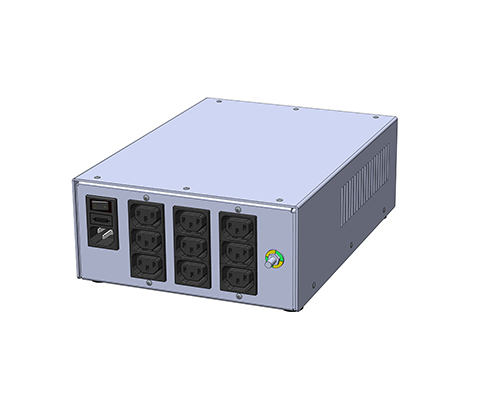

REOMED I 1000
The REOMED 1000 is characterised by its high power capacity and is ideal for demanding medical applications. It offers electronic inrush current limitation as well as extended short-circuit and overload protection. The device is housed in a robust aluminium casing and has plug connections in accordance with IEC 60320 and an equipotential bonding pin in accordance with DIN 42801. These features help to increase the safety and reliability of medical systems by effectively limiting the leakage current.
REOMED I 800
The REOMED I 800W isolating transformer from REO stands out from other models in the REOMED I series due to its higher power capacity of 800 watts. It offers the same basic advantages such as very good efficiency, simple connection options and a very low stray magnetic field. In addition, it is available with options such as electronic switch-on attenuation, overvoltage protection and a mains filter, which further increase safety and reliability in medical applications. The transformer also fulfils various international norms and standards for medical technology.

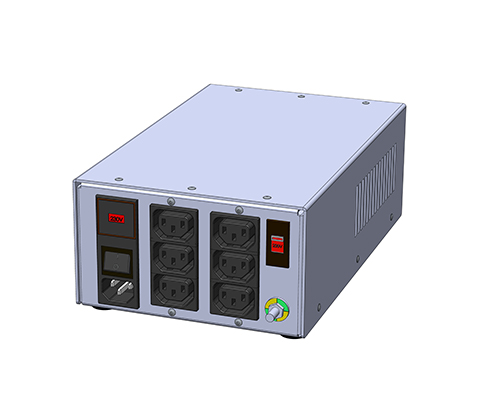

REOMED I 600
The REOMED I 600 delivers a power capacity of 600 watts. The model is a TÜV-approved isolating transformer for the medical sector, which reduces the leakage current and thus ensures the safety of operators and patients. The REOMED I 600 also offers a wide range of options, such as integrated inrush current limitation and overvoltage protection, as well as a robust aluminium housing and a very low stray magnetic field. It is particularly suitable for applications with higher power requirements and fulfils international medical standards such as IEC 60601-1.
REOMED I 300
The REOMED 300W offers a specific output of 300 watts. It has a wide range of options and is characterised by its low weight and sturdy aluminium housing. It offers integrated short-circuit and overload protection as well as an inrush current limiter. It also has a plug connection in accordance with IEC 60320 and a potential equalisation pin in accordance with DIN 42801. Its certifications include the IEC 60601-1 and ANSI/AAMIES 60601-1 standards.
| Input voltage | 115 / 230 V |
| Output voltage | 115 / 230 V |
| Nominal power consumption | 300 – 2200 VA |
| Enclosure protection class | IP 20 |
| Weight | 4.5 – 19.0 kg |
| Earth leakage current at 127/254V / 50/60Hz | < 300 / 500 µA |
| Number of output sockets | 4 – 9 according to IEC 320 |
| Test voltage | 4 kVac (between primary and secondary winding) |
| Max. Ambient temperature |
40 °C |
| Insulation resistance | > 2 MΩ |
| Protective conductor resistance | < 0,1 Ω |
All devices have an inrush current limiter (NTC or electronic), potential equalization in accordance with DIN 42801, a primary mains cable and a protective temperature limiter. The devices can be wall, table or floor mounted.
