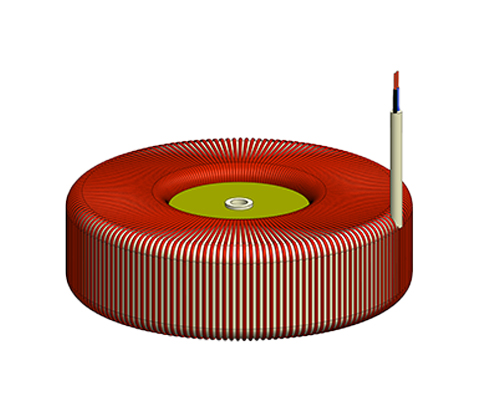

Toroidal fixed transformer with sealed centre hole as a mains, auto, safety or isolation transformer
Description
The toroidal fixed transformers with sealed centre hole or sealed socket have the same advantages as the open transformers, however, offer a good mounting solution for the transformers. The costs for an additional mounting option are cut in this series of transformers and replaced by a central screw, which only requires a short set-up time. A safe distance to the mounting surface is ensured.
Advantages
- Integrated mounting plate with partial sealing
- No humming
- Low magnetic stray field
- Low voltage drop
- High efficiency
- Direct mounting option with just one screw
- Safe distance to the mounting surface
- Connection with wires or stranded wires
- Standards: EN 61558; EN 60601
| Rated power | 10 – 6000 VA |
| Input voltage | 230 V |
| Output voltage | 24 – 690 V |
| Rated current | max. 50 A |
| Frequency range | 50 – 400 Hz |
| Temperature class | T40/E and T40/B |
*In addition to these standard series, we develop special solutions with special voltages and higher outputs according to your requirements. Please get in touch with us.
All data and configurations can be found in our product data sheet
