Phase angle controllers REOVIB SMART SYSTEM

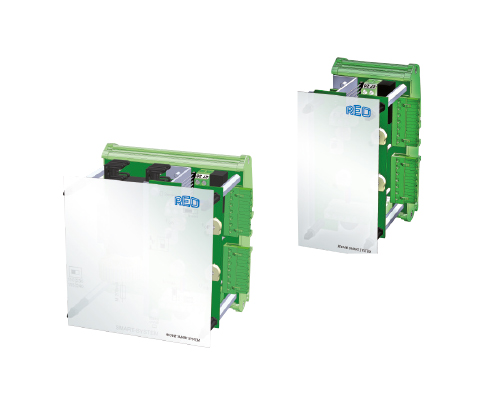

IP00, for assembly on a DIN rail Description REOVIB Smart system basic module In an open design for mounting on a DIN rail with an output channel of max. 6 A with level control/level switch. The basic module has a power supply for extension modules. This means that additional output modules can be added up to a total current of 10 A. REOVIB Smart system extension module In open design for mounting on a DIN rail. The extension module has one output channel max. 6 A with level control/exchange circuit and can be installed together with the basic module and several extension modules. REOVIB SMART SINGLE In open design for mounting on a DIN rail with an output channel of max. 6 A. Advantages Cost-effective phase-angle control systems with vital functionality Can be used as a standalone device or in modular design for control of a complete feed system Output current up to 6A DIN rail mounting Versions available with fill level/overflow control Typical applications Weighing systems, multiple-head weighing wagon, conveyor & assembly automation, sorting systems Technical specification Type SMART Single SMART Basic module SMART Expansion module Mains input 110/ 230 V switchable 110/ 230 Vswitchable via SMART Basic module Mains frequency 50 / 60 Hz +/- 3 Hz 50 / 60 Hz +/- 3 Hz via SMART Basic module Output voltage 20 … 100V/ 40…210 V 20 … 100V/ 40…210 V 20 … 100V/ 40…210 V Output current max. 6 A max. 6 A max. 6 A Vibration frequency 50 … 100 Hz (60 / 120 Hz) 50 … 100 Hz (60 / 120 Hz) 50 … 100 Hz (60 / 120 Hz) Setpoint value Poti, 0 … 10 V, 0 (4) … 20 mA Poti, 0 … 10 V, 0 (4) … 20 mA Poti, 0 … 10 V, 0 (4) … 20 mA Ext. Enable 24 V DC, Switch 24 V DC, Switch 24 V DC, Switch U min / U max Internal potentiometer Internal potentiometer Internal potentiometer Soft start fixed fixed fixed Max. Output current from all outputs – 10 A – Fill level / overflow control – ✓ ✓ Conformity CE, RoHS CE, RoHS CE, RoHS Protection class IP00 IP00 IP00 Data sheet Download our extensive catalog and discover many other REO products. Download Data sheet Certifications
Phase angle controllers REOVIB SMART SYSTEM MINI

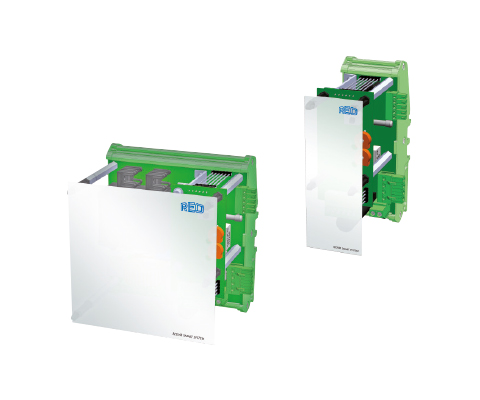

IP00, for assembly on a DIN rail Description REOVIB SMART SYSTEM MINI basic module REOVIB SMART SYSTEM basic module in open design for assembly on a DIN rail with an outputchannel of max. 6A with fill level/overflow control.The basic module has a supply for expansion modules, so further output modules up to a totalcurrent of 10A can be connected. REOVIB SMART SYSTEM MINI expansion module In open design for DIN rail mounting. An expansion module has one output channel max. 1A and can be set up together with the basic module and several expansion modules. Advantages Cost-effective phase-angle control systems with vital functionality Can be used as a standalone device or in modular design for control of a complete feed system Output current up to 6A DIN rail mounting Versions available with fill level/overflow control Typical applications Weighing systems, multiple-head weighing wagon, conveyor & assembly automation, sorting systems Technical specification Type SMART mini Basic module SMART mini Expansion module Mains input 110/ 230 V autom. recognition via SMART mini Basic module Mains frequency 50 / 60 Hz +/- 3 Hz via SMART mini Basic module Output voltage 20 … 100V/ 40…210 V 20 … 100V/ 40…210 V Output current max. 6 A max. 6 A Vibration frequency 50 … 100 Hz (60 / 120 Hz) 50 … 100 Hz (60 / 120 Hz) Setpoint value Poti, 0 … 10 V, 0 (4) … 20 mA Poti, 0 … 10 V, 0 (4) … 20 mA Ext. Enable 24 V DC, Switch 24 V DC, Switch U min / U max internal potentiometer internal potentiometer Soft start fixed fixed Max. Output current from all outputs 15 A – Fill level / overflow control – – Conformity CE, RoHS CE, RoHS Protection class IP00 IP00 Data sheet Download our extensive catalog and discover many other REO products. Download Data sheet Certifications
Phase angle controllers REOVIB SMART ATS 100
IP54 design for mounting directly on the vibrating machine, single output Description REOVIB ATS 100 devices are available in an IP 54 housing with output currents up to 15 A andare listed by UL.The control devices are available with input cable /output cable. The devices offer the most important functions for use in vibratory conveyor technology and therefore represent a cost-effective option for controlling vibratory conveyors – and in a high-quality design. The devices are available in various protection classes – as a control cabinet installation module in IP20 or as a housing variant in IP54 for direct mounting on the application. The housing variants with protection class IP54 are available in different versions: Input cable/output cable Input cable/output socket Complete cable connection solution for mains, output and control connections. Advantages Cost-effective phase-angle control systems with vital functionality IP54-Version for mounting directly on the vibrating machine or IP20-Version fas a module for mounting in a switch cabinet Versions available with UL approval (SMART ATS 100) Output current up to 15 A Typical applications Conveyor & assembly automation, conveyor technology, sorting systems Technical specification Mains input 110/ 230 V switchable Mains frequency 50 / 60 Hz +/- 3 Hz Output voltage 20 … 100V/ 40…210 V Output current max. 15 A Vibration frequency50Hz 50 Hz / 100 Hz Vibration frequency 60Hz 60 Hz / 120 Hz Setpoint value Poti, 0 … 10 V, 0 … 20 mA Ext. Enable 24 V DC, Switch Setting Umin/ Umax Internal potentiometer Soft start fixed Mains voltage compensation – Conformity UL, CE, RoHS Protection class IP54 Ambient temperature 0…45°C Certifications Optional UL-certified
Phase angle controllers REOVIB SMART 6A
IP54 or IP20 Description The REOVIB SMART series includes phase angle control units for use in vibratory conveyor applications. The devices offer the most important functions for use in vibratory conveyor technology and therefore represent a cost-effective option for controlling vibratory conveyors – and in a high-quality design. The devices are available in various protection classes – as a control cabinet installation module in IP20 or as a housing variant in IP54 for direct mounting on the application. The housing variants with protection class IP54 are available in different versions: Input cable/output cable Input cable/output socket Complete cable connection solution for mains, output and control connections The REOVIB SMART ATS 100 devices are available in an IP54 housing design with output currents up to 15 A and are UL-listed. Advantages Cost-effective phase-angle control systems with vital functionality IP54-Version for mounting directly on the vibrating machine or IP20-Version fas a module for mounting in a switch cabinet Versions available with UL approval (SMART ATS 100) Output current up to 6A Typical applications Conveyor & assembly automation, sorting systems Technical specification Mains input 110/ 230 V switchable Mains frequency 50 / 60 Hz +/- 3 Hz Output voltage 20 … 100V/ 40…210 V Output current max. 6A Vibration frequency50Hz 50 Hz / 100 Hz Vibration frequency 60Hz 60 Hz / 120 Hz Setpoint value Poti, 0 … 10 V, 0 … 20 mA Ext. Enable 24 V DC, Switch Setting Umin/ Umax Internal potentiometer Soft start fixed Mains voltage compensation – Conformity CE, RoHS Protection class IP20/ IP54 Ambient temperature 0…45°C Data sheet Download our extensive catalog and discover many other REO products. Download Data sheet Certifications Optional UL-certified
Phase angle controllers REOVIB SMART-MIC
IP54 or IP20 Description In contrast to the previous model, the new built-in LED display allows exact values to be set the same way every time. This ensures more precise settings and easier traceability of the entries. Thanks to the connection to Industry 4.0 and IIoT readiness, with the REOVIB SMART-MIC you are already securing the possibilities for the communication technology of the future. Just like the predecessor devices, the devices in the REOVIB SMART-MIC series are also available in various protection classes – as a control cabinet installation module in IP20 or as a housing variant in IP54 for direct mounting on the application. The housing variants with protection class IP54 are available in different versions: Input cable/output cable Input cable/output socket Completely pluggable with input plug and output socket In addition to the functions and benefits of the REOVIB SMART series, the control unit has mains voltage compensation for constant amplitude and an adjustable soft start ramp time. Advantages LED display Mains voltage compensation IP54-Version for mounting directly on the vibrating machine or IP20-Version fas a module for mounting in a switch cabinet Output current up to 6A Typical applications Conveyor & assembly automation, conveyor technology, sorting systems Technical specification Mains input 110/ 230 V switchable Mains frequency 50 / 60 Hz +/- 3 Hz Output voltage 20 … 100V/ 40…210 V Output current max. 6A Vibration frequency50Hz 50 Hz / 100 Hz Vibration frequency 60Hz 60 Hz / 120 Hz Setpoint specification LED display,0 … 10 V, 0 (4) … 20 mA* Ext. Enable 24 V DC, Switch Umin/ Umax setting LED display (IP54) / potentiometer (IP20) Soft start adjustable 0…60 Sec. Mains voltage compensation ✓ Conformity CE, RoHS Protection class IP20/ IP54 Ambient temperature 0…40°C * Optional for IP54 Data sheet Download our extensive catalog and discover many other REO products. Download Data sheet Certifications
Programmable Phase Angle Controller REOVIB MTS 441
IP54 or IP20 DESCRIPTION The REOVIB MTS series includes single-channel, two-channel and three-channel control units for vibratory conveyor drives. These are phase-angle control systems. The vibration frequency of the conveyor can be the same as or twice the frequency of the input voltage. (Other frequencies are possible depending on the type). Plug and socket connections for all inputs and outputs make rapid installation possible and facilitate the combination of several devices with each other or with external control systems. The devices use digital technology and are operated via a LED or LCD display and buttons. All settings can be made without the housing having to be opened. The REOVIB MTS 441 control units have a setpoint adjustment option for the conveying speed. All parameters can be entered via the display integrated in the front panel. The MTS 441 can be linked to other devices from the REOVIB MTS series. User-specific settings can be saved and recalled. The REOVIB MTS 441 is available in IP20 and IP54 versions, as well as in various connection variants: Input cable/output socket Complete cable connection solution for mains, output and control connections ADVANTAGES Phase-angle control with programmable functions Single-channel, two-channel or three-channel control for the optimal control of the complete conveyor system Digital setting of all parameters via LED display or multiline LCD display (MTS 443 LCD) In IP54 or IP20 design (MTS 441) Automatic mains voltage adjustment Material flow control Various sensor logic functions can be set Adjustable soft start With fill level/overflow control Integrated mains voltage compensation with constant vibration amplitude TECHNICAL SPECIFICATION Mains input 110/ 230 V autom. recognition Mains frequency 50 / 60 Hz +/- 3 Hz Output voltage 20 … 100V/ 40…210 V Output current max. 6 A, max. 10 A (Option) Number of outputs 1 Max. Output current from all outputs – Vibration frequency 50 … 100 Hz (60/120 Hz) Setpoint value Display, P0ti, 0 … 10 V, 0 (4) … 20 mA Status signal 24 V DC Ext. Enable 24 V DC, Switch Sensor supply 24 V DC Setting Umin/ Umax Display Soft start Adjustable 0…5 Sec. Fill level/ overflow control PNP, 24 V DC Mains voltage compensation ✓ Coarse-/fine control ✓ Selectable cycle operation ✓ Sensor time out control ✓ Conformity CE, RoHS Protection class IP20/ IP54 Data sheet Download our extensive catalog and discover many other REO products. Download Datenblatt Zertifizierung
Phase Angle Controller REOVIB RTS R6/539

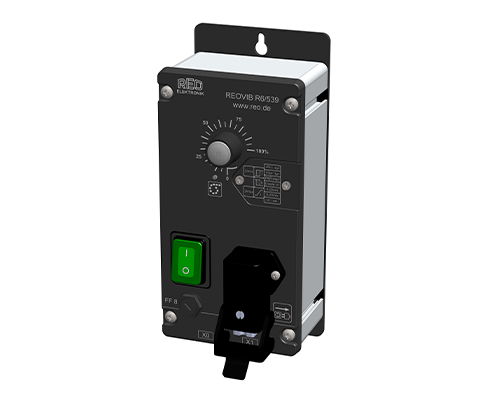

IP54 design for mounting directly on the vibrating machine, single output Description The devices in the REOVIB RTS series are available as a housing variant with protection class IP54 for direct installation on the system. The maximum output current is 6 A. The devices have a compensation circuit for constant amplitude in the event of mains voltage fluctuations, potentiometers for setting Umin / Umax and the soft start time. (Devices with fill level control / back-up circuit include a back-up relay for linking to other control devices). The control units are available in different versions: Input cable/output cable Input cable/output socket Advantages Inexpensive phase angle controls with extended functionalities IP54 design for mounting directly on the vibrating machine Output current up to 6A Versions with level control / accumulation circuit available (REOVIB RTS RS6/539-559) Mains voltage compensation with constant amplitude Adjustable soft start ramp time Typical applications Conveyor & assembly automation, conveyor technology, sieving technology Technical specification Mains input 110/ 230 V switchable 110/ 230 V switchable Mains frequency 50 / 60 Hz +/- 3 Hz 50 / 60 Hz +/- 3 Hz Output voltage 20 … 100V/40…210 V 20 … 100V/40…210 V Output current max. 6 A max. 6 A Vibration frequency 50 … 100 Hz(60/120Hz) 50 … 100 Hz(60/120Hz) Setpoint specification P0ti, 0 … 10 V, 0 … 20 mA P0ti, 0 … 10 V, 0 … 20 mA Ext. Enable 24 V DC, Switch 24 V DC, Switch Umin/ Umax setting Internal potentiometers internal potentiometers Soft start adjustable 0.2…5 sec. adjustable 0.2…5 sec. Status relay optional ✓ Mains voltage compensation ✓ ✓ Fill level control/ congestion control – ✓ Conformity CE, RoHS CE, RoHS Protection class IP54 IP54 *For IP54 Data sheet Download our extensive catalog and discover many other REO products. Download Data sheet Zertifizierung />
REOVIB SMART IP20
IP20 Description The REOVIB SMART series includes phase angle control units for use in vibratory conveyor applications. The devices offer the most important functions for use in vibratory conveyor technology and therefore represent a cost-effective option for controlling vibratory conveyors – and in a high-quality design. The devices are available in various protection classes – as a control cabinet installation module in IP20 or as a housing variant in IP54 for direct mounting on the application. The housing variants with protection class IP54 are available in different versions: Input cable/output cable Input cable/output socket Complete cable connection solution for mains, output and control connections REOVIB SMART ATS 100 devices are available in an IP54 housing with output currents up to 15 A and are listed by UL. Advantages Cost-effective phase-angle control systems with vital functionality IP54-Version for mounting directly on the vibrating machine or IP20-Version fas a module for mounting in a switch cabinet Versions available with UL approval (SMART ATS 100) Output current up to 15 A Typical applications Conveyor & assembly automation, conveyor technology, sorting systems Technical specification Mains input 110/ 230 V switchable Mains frequency 50 / 60 Hz +/- 3 Hz Output voltage 20 … 100V/ 40…210 V Output current max. 15 A Vibration frequency 50Hz 50 … 100 Hz Vibration frequency 60Hz 60 … 120 Hz Setpoint value P0ti, 0 … 10 V, 0… 20 mA Ext. Enable 24 V DC, Switch Sensor supply 24 V DC Setting Umin/ Umax Internal potentiometer Soft start fixed Mains voltage compensation – Conformity UL,CE, RoHS Protection class IP54 Ambient temperature 0…45°C Zertifizierung Optional UL-certified
REOVIB SMART System phase-angle gates
In an open design for mounting on a DIN rail with an output channel of max. 6 A with level control/level switch.
